Headphone amplifier

Balanced drive portable headphone amplifier

Charisma XHP-3 Portable reference

-Specification-
Inputs: φ3.5 Stereo mini / 1.4V(rms) Inputs signal handling
Input Impedance: 20kohm
Recommendation load impedance: 30ohm-120ohm
Output: φ3.5mm 4pole jack

Operation: Class AB. BTL amplifier design, 8.4V Rechageble Ni-MH(006P type) Battery Drive
Dimensions: 60mm (W) X 98mm, w knob (H) X 20mm (D)
Net Weight: 140g
Price: Please ask a dealer
-Made in JAPAN-

日本でのお問合せ先:Sound Julia 様 TEL 052 - 848 - 6378(名古屋市)

Balanced drive headphone amplifier

Charisma XHP-4 Desktop reference

-Specification-
Input: 1-Pair single ended (RCA),
Input Impedance : 20Kohm.
Recommendation load impedance: 30ohm-400ohm
Output: XLR-4P balanced (1pin: L+ / 2pin: L- / 3pin: R+ / 4pin: R-)
Operation: Class AB. BTL amplifier design, 12V/2200mAh Rechageble Ni-MH Battery Drive
Dimensions: 132mm (W) X 46mm (H) X 136mm (D)
Net Weight: 1KG
Price: Please ask a dealer
-Made in JAPAN-

日本でのお問合せ先:Sound Julia 様 TEL 052 - 848 - 6378(名古屋市)

Balanced drive headphone amplifier

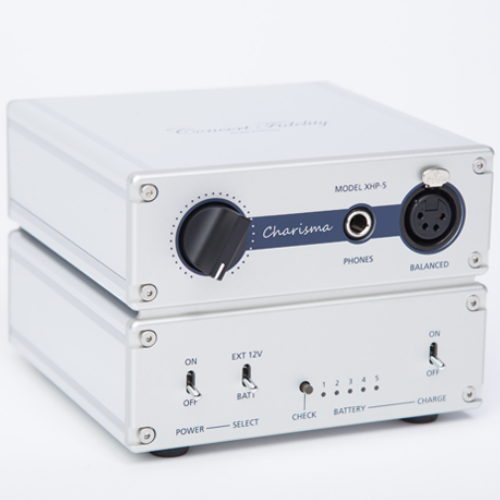

Charisma XHP-5 Studio reference

-Specification-
Input: 1-Pair single ended (RCA)
Input Impedance : 20kohm.
Recommendation load impedance: 12ohm-600ohm
Output SE: φ6.5 stereo 3P-jack single ended
Output BAL: XLR-4P balanced (1pin: L+ / 2pin: L- / 3pin: R+ / 4pin: R-)
Operation: Class AB. BTL amplifier design, 12V/2500mAh Rechageble Ni-MH Battery Drive
Dimensions: 132mm (W) X 95mm (H) X 136mm (D)
Net Weight: 1.6KG
Price: Please ask a dealer
-Made in JAPAN-

日本でのお問合せ先:Sound Julia 様 TEL 052 - 848 - 6378(名古屋市)

Headphone monitoring reference amplifier

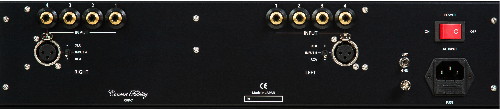

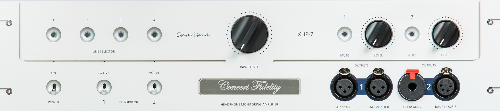

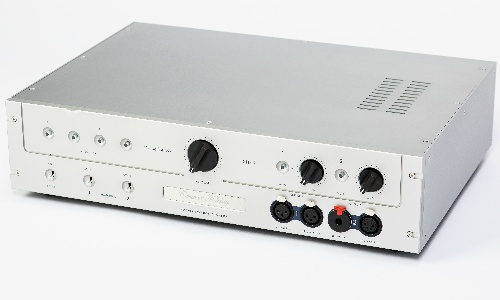

Charisma XHP-7 Audiophile reference

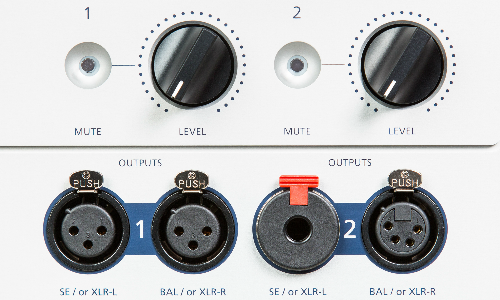

Output section is customizable with user specifications.
SE: φ6.5 stereo 3P-jack single ended
BAL: XLR-4P balanced (1pin: L+ / 2pin: L- / 3pin: R+ / 4pin: R-)
XLR-L/R: XLR-3P unbalanced or balanced



-Specification-
Inputs: 4-Line Level Inputs (RCA) and 1-XLR(Input 4)
Input Impedance: 100kohms
Operation: Class AB. BTL amplifier design
Headphone Outputs: 2 Individual headphone amplifiers, Individial output level controls and mute.
Outputs 1: SE and BAL(XLR-4P) or XLR-L(3P) and XLR-R(3P)
Outputs 2: SE and BAL(XLR-4P) or XLR-L(3P) and XLR-R(3P)
Recommendation load impedance: 12ohm-600ohm
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 100mm (H) X 310mm (D)
Net Weight: 8.5KG
Price: Please ask a dealer
-Made in JAPAN-

日本でのお問合せ先:Sound Julia 様 TEL 052 - 848 - 6378(名古屋市)

U.S. Distrubuter


ShinEn AUDIO DISTRIBUTION
