Resolution Series

CF-i300B

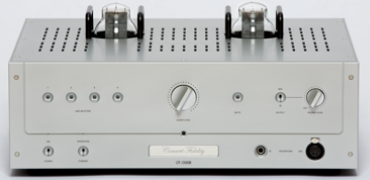

CF-i300B Integrated Amplifier

The CF-i300B is an all-tube integrated amplifier featuring a pair of the 300B output tube driven by a pair of 6SJ7/6SJ7GT/5693. Rectification is handled by a 5AR4/GZ34. The directly heated triode amp outputs 9 watts/8ohm per channel. The circuit topology is extremely simple and signal paths are short.

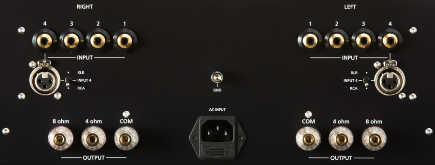

The CF-i300B has four sets of single-ended inputs and one of them can be switched
to balanced (XLR). Users can select the speaker output impedance between 4 ohm and 8 ohm. As a bonus, it has a solid-state headphone amp which can drive either pair of a single-ended or balanced headphones.

-Specification-
Inputs: INPUT 1-3 Line Level Inputs (RCA), INPUT 4 Line Level Input (RCA, XLR swithed)
Input Impedance: 100kohm (RCA single-ended), 50Kohm (XLR balanced)
Speaker Outputs: 0-4ohm-8ohm
Headphone Outputs: SE(1/4" TRS) or BAL(XLR-4P)
Tube Complement: 300B (2) for Output, 6SJ7/6SJ7GT/5693 (2) for Driver, 5AR4/GZ34 (1) for rectification
Others: Remote volume control *Option
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 310mm (D)
Net Weight: 20Kg
Price: Please ask a dealer
-
Note: *This Option is under development.

CLS-050

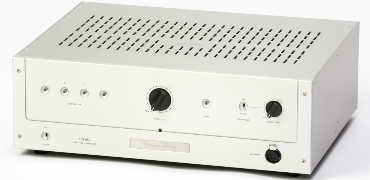

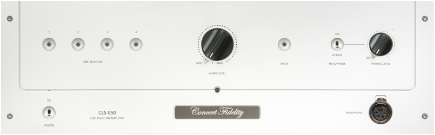

CLS-050 Linestage Preamplifier

The CLS-050 is an all-tube pre-amplifier featuring a pair of the 6V6 tube and Custom made (made in Japan) line output transformer. Rectification is handled by a 5AR4/GZ34. Audio level control is High resolution custom made attenuator by ELMA. The circuit topology is extremely simple and signal paths are short.

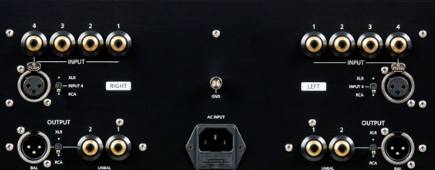

The CLS-050 has four sets of single-ended inputs and one of them can be switched
to balanced (XLR). Users can select the Pre output of balanced (XLR) or single-ended (RCA). As a bonus, it has a solid-state headphone amp which can drive a single-ended or balanced headphones.


-Specification-
Inputs: INPUT 1-3 Line Level Inputs (RCA), INPUT 4 Line Level Input (RCA, XLR swithed)
Input Impedance: 100kohm (RCA single-ended), 50Kohm (XLR balanced)
Pre Outputs: Balanced (XLR) x 1, Single-ended (RCA) x 2
Headphone Outputs: SE (1/4" TRS) or BAL (XLR-4P)
Tube Complement: 6V6(MT8B)/6V6GT(T9)/CV511 x2 for Gain, 5AR4/GZ34 x1 for rectification.
Custom Order Option: 6V6G(ST14), 6SN7, 5692, WE310A, WE337A, 5U4/5R4, 274B. Please ask a dealer, if you have a good tube.
Gain: 6dB
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 310mm (D)
Net Weight: 14Kg
Price: Please ask a dealer

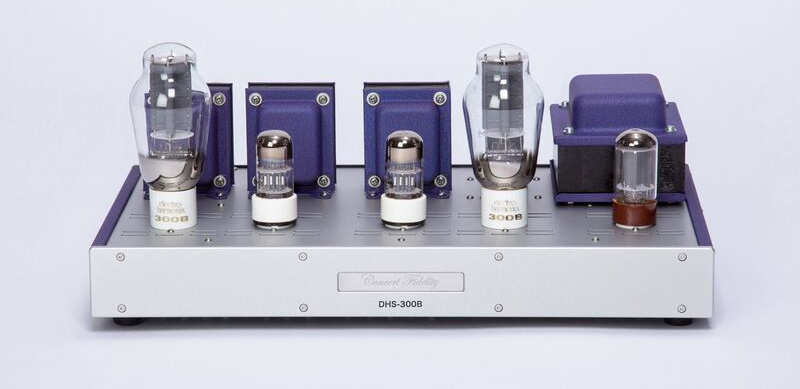

DHS-300B

Royal Purple Collection

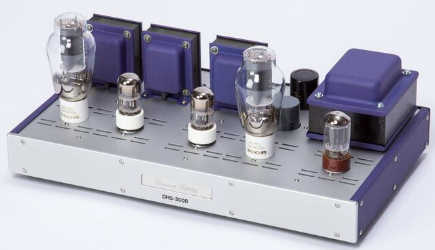

300B Single Ended Power Amplifier

The DHS-300B is an all-tube power amplifier featuring a pair of the WEC 300B type output tube driven by a pair of 6SJ7/6SJ7GT/5693. Rectification is handled by a 5AR4/GZ34. The directly heated triode amp outputs 9 watts/8ohm per channel.

-Specification-

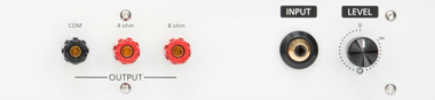

Inputs: Line Level Inputs (RCA single-ended)
Input Impedance: 220kohm (RCA single-ended)
Speaker Outputs: 0-4ohm-8ohm
Gain:
Tube Complement: 300B (2) for Output, 6SJ7/6SJ7GT/5693 (2) for Driver, 5AR4/GZ34 (1) for rectification
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 260mm (D)
Net Weight: 11Kg
Price: Please ask a dealer

DHP-300B

Royal Purple Collection

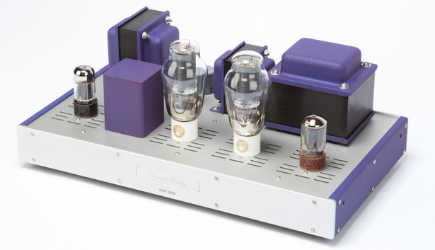

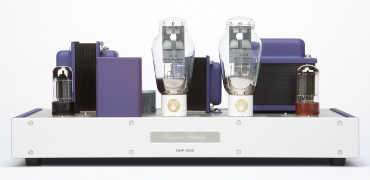

300B Push Pull Power amplifier

The DHP-300B is an all-tube power amplifier featuring a pair of the WEC 300B type output tube driven by a 6SN7 and custom made Interstag transformer. All transformer is custom-made (made in Japan). Rectification is handled by a 5AR4/GZ34. The directly heated triode amp outputs 20 watts/8ohm.



-Specification-
Inputs: Line Level Input (RCA single-ended)
Input Impedance: 100kohm (RCA single-ended)
Speaker Outputs: 0-4ohm-8ohm
Gain:
Tube Complement: 300B (2) for Output, 6SN7 (1) for Driver, 5AR4/GZ34 (1) for rectification (WE-274A type, Option).
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 260mm (D)
Net Weight: 18Kg
Price: Please ask a dealer
